LINE

This guide explains how to set up an LINE monetization data grabber in the Magify analytics system.

The grabber enables automated import of monetization data — including ad revenue, impressions, eCPM, ad unit performance, and other relevant metrics — directly from your LINE account into your analytics pipeline.

Getting Started

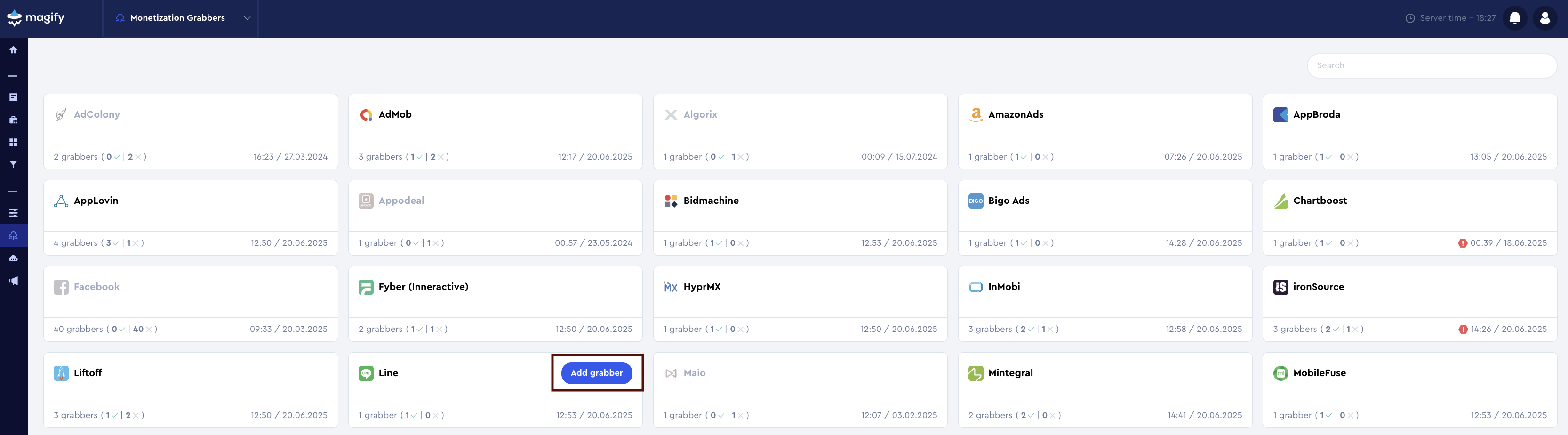

1. Navigate to Configurations > Integrations > Monetization Grabbers in the Magify interface.
2. Find LINE in the list and click Add Grabber to create a new data source.
3. A configuration form will open.

This form is used to connect Magify to your LINE account by providing the required credentials: your Username, Password and a custom integration name.

Each field in the form is described below.

General Settings

Name

A descriptive name for the grabber configuration. Helps identify the data source among other integrations.

Recommended format: LINE Grabber [CompanyName]

Optional field – recommended to fill in for easier navigation.

Organization

Select your organization from the dropdown list.

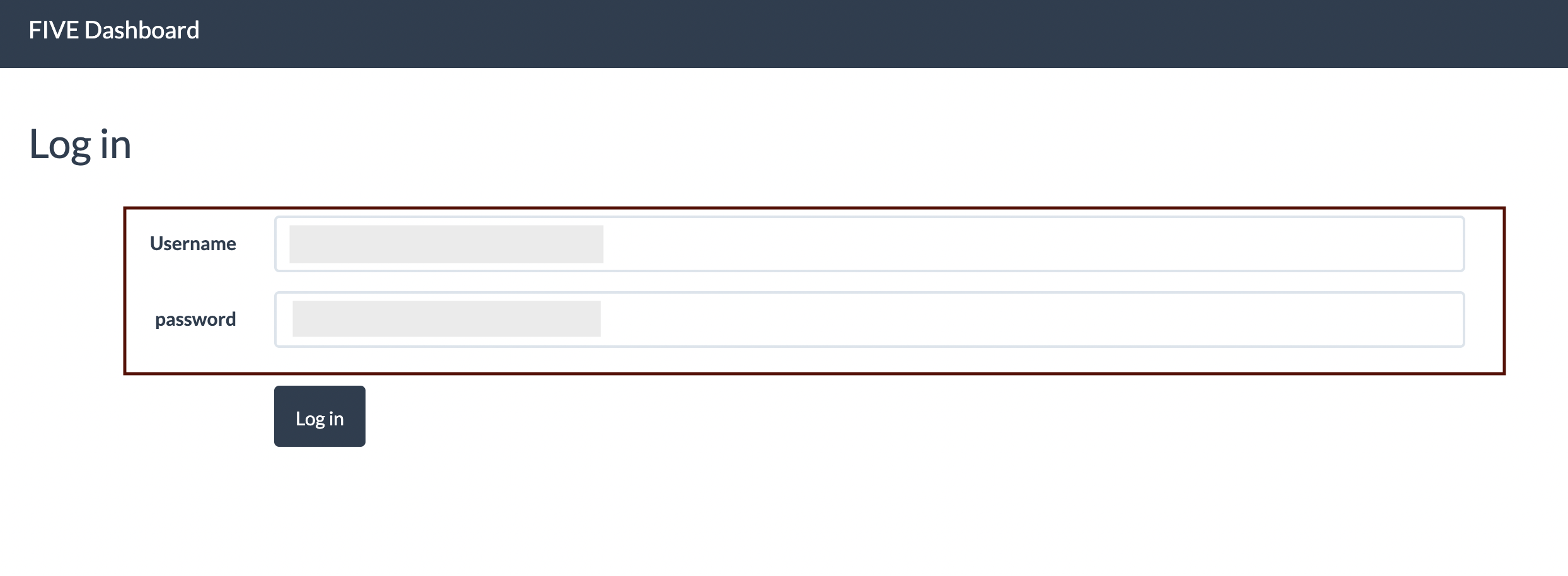

Username and Password

To connect Magify to your LINE (FiveCDM) account and access monetization data via the API, you must provide Basic Auth credentials — specifically, your Username and Password.

These credentials are required to authenticate API requests and securely retrieve reporting data such as ad revenue and impressions.

How to obtain them:

1. Go to the LINE Partner Portal (FiveCDM).
2. Credentials are not created manually — they are issued by your LINE account manager.
3. If you don’t have access, please contact your LINE representative to request your API username and password.

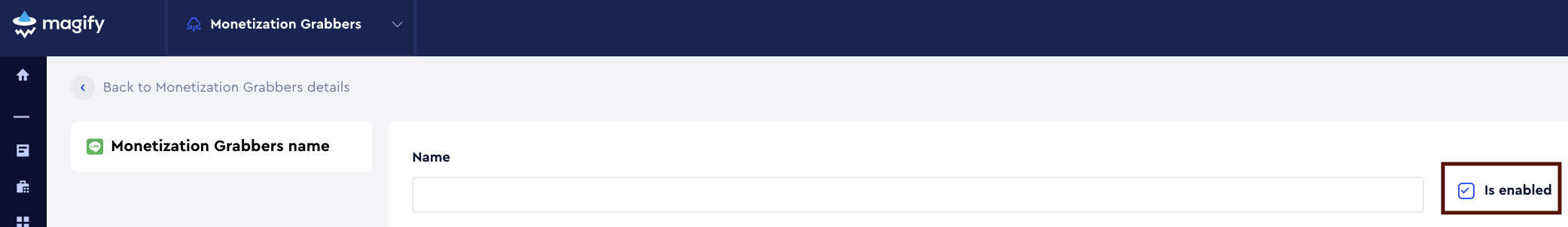

Is Enabled

Enable this option to start collecting data immediately. If left unchecked, the configuration is saved but inactive.

Saving the Configuration

Once all required fields are filled in, click Save to complete the setup. The enabled grabber will then start collecting data from LINE according to the configured schedule.

By default, each grabber is configured to load data for 1 day when created.

If you need to collect data for a longer period (e.g., for initial setup or data recovery), please contact us — we can manually adjust this value for you.
