Pangle (TikTok Audience Network)

This guide explains how to set up a Pangle (TikTok Audience Network) monetization data grabber in the Magify analytics system.

The grabber enables the automated import of monetization data, including ad revenue, impressions, eCPM, ad unit performance, and other AdMob-specific metrics from your Pangle account into your analytics pipeline.

Getting Started

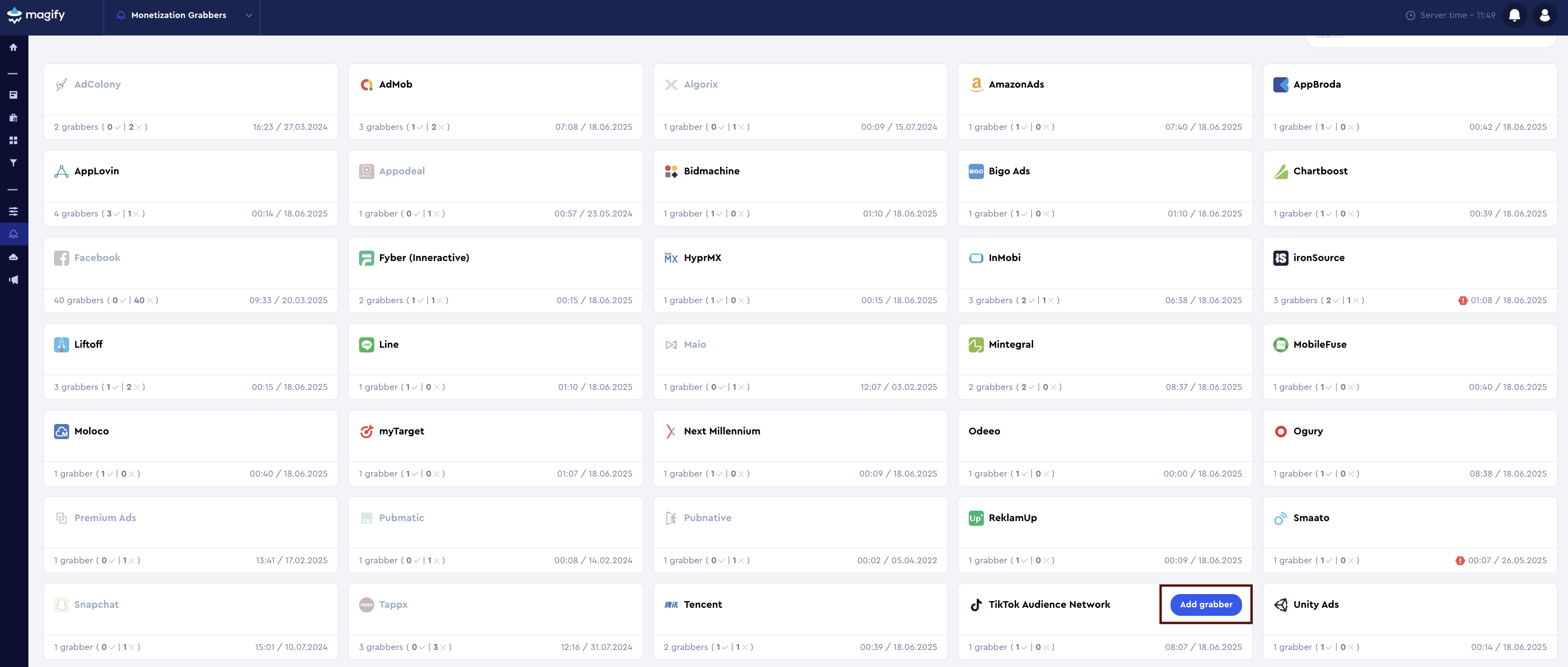

1. Navigate to Configurations > Integrations > Monetization Grabbers in the Magify interface.
2. Find Pangle (TikTok Audience Network) in the list and click Add Grabber to create a new data source.
3. A configuration form will open.

This form is used to connect Magify to your Pangle account by providing the required credentials: User ID, Secure Key, App ID, and a custom integration name.

General Settings

Form Overview

• Top Section – General connection parameters: integration name, organization, and API credentials.
• Applications Section – A list of individual Pangle applications to be synced.

Each field in the form is described below.

Name

A descriptive name for the grabber configuration. Helps identify the data source among other integrations.

Recommended format: Pangle Grabber [CompanyName]

Optional field – recommended to fill in for easier navigation.

Organization

Select your organization from the dropdown list.

User ID and Security Key

To integrate with the Pangle Reporting API 2.0, you need two authentication parameters:

• User ID (also referred to as Role ID) — a unique identifier for the user account that has API access permissions.
• Security Key — a secret key used for signing and authenticating API requests.

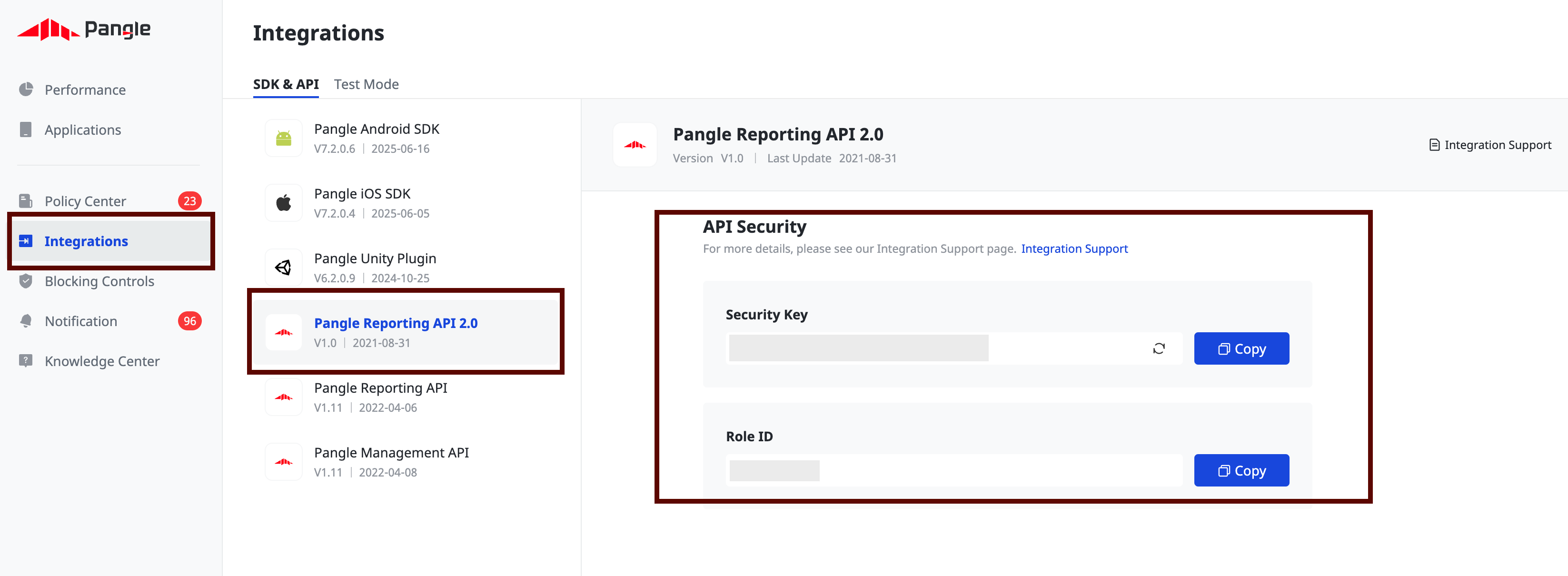

How to find them:

1. Log in to the Pangle dashboard.
2. In the left-hand menu, go to Integrations.
3. Under the SDK & API tab, select Pangle Reporting API 2.0.
4. On the right side, in the API Security section, you will see:
   • The Security Key field with a Copy button — this is your secret key.
   • The Role ID field — this is your User ID.

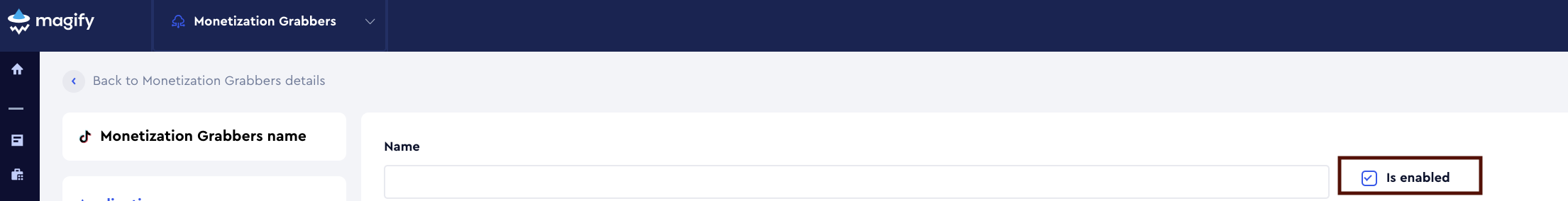

Is Enabled

Enable this option to start collecting data immediately. If left unchecked, the configuration is saved but inactive.

Application Section

Use this section to configure individual applications for data synchronization with Pangle.

Each field serves the following purpose:

App ID

In the context of Pangle monetization and API integration, the App ID is a unique identifier assigned to each of your applications registered in the Pangle platform. This ID is required when requesting performance data via the Reporting API or when configuring monetization.

How to find it:

1. Log in to the Pangle dashboard.
2. In the left-hand menu, click Applications.
3. You will see a list of your registered apps.
4. Each entry includes an App ID, usually displayed under the app name.

Alternatively:

• Click on a specific app to view its detailed settings — the App ID will be displayed in the overview section.

Application

Select the corresponding application(s) from the dropdown list.

Click + Add Applications to include additional apps from your account.

Saving the Configuration

Once all required fields are filled in, click Save to complete the setup. The enabled grabber will then start collecting data from Pangle according to the configured schedule.

By default, each grabber is configured to load data for 1 day when created.

If you need to collect data for a longer period (e.g., for initial setup or data recovery), please contact us — we can manually adjust this value for you.
